Silicon nitride hot surface igniter

Appliance:

Gas / Fuel Appliances

Function:

100% reliable ignition, no electromagnetic interference, no gas leakage, high mechanical strength, strong humidity resistance and thermal shock resistance

Voltage range:

5--28V more ...

Rated power(remark):

10W | 15W | 20W | 30W | 40W | 60W | 80W | 100W | 140W | 150W | 250W |

Certify:

ISO 9001（TUV）、CSA

ACI 100 / ACI 200  series:

ACI 1000 series:

Normal Assembly Mode
Here below is the normal assembly mode:

The protrude length of heater:L0	Current dimensions of ceramic holder: ΦD×L
50	Φ10×30 Φ10×45 Φ10×158

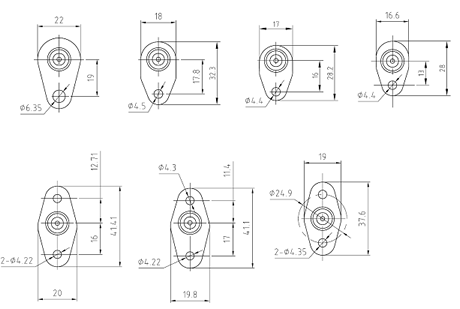

Regarding the mounting brackets, please refer to the following dimensions. You can choose the corresponding mounting bracket based on the assembly dimensions of your equipment.

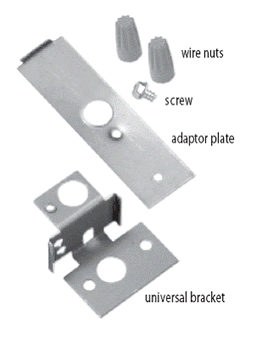

Accessories

In order to replace the hot surface Igniters of other companies in the market conveniently, Le-mark can provide you with the shown accessories to assemble the Igniters. For more details, please refer to the Instruction Manuals of specific products correspondingly.
